Telemecanique LX1FG500 replacement Magnetic Coil – BRAH BLX1FG500

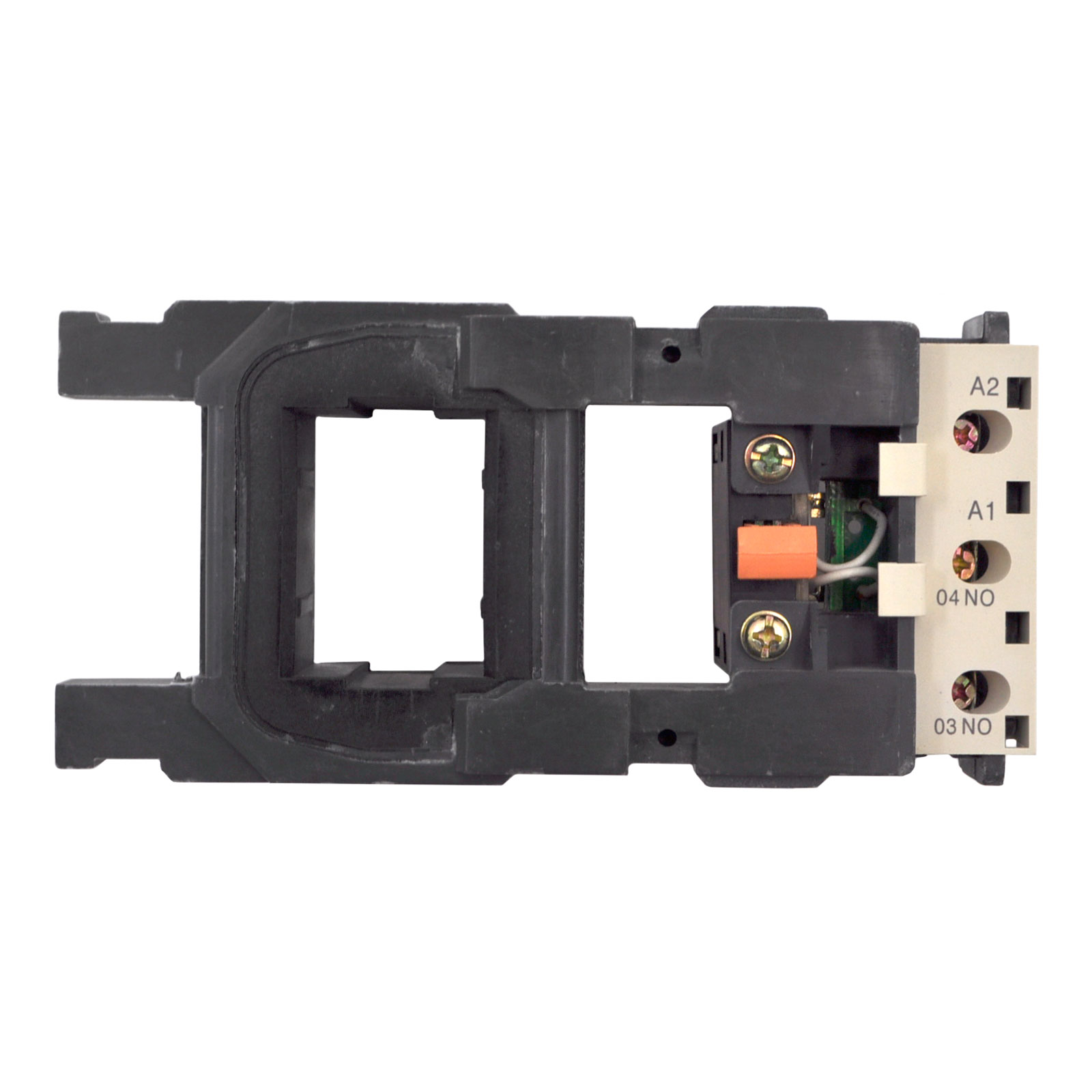

BLX1FG500 Magnetic Coil – view 1 of 3BLX1FG500 Magnetic Coil – view 2 of 3BLX1FG500 Magnetic Coil – view 3 of 3

Telemecanique LX1FG500 Replacement Magnetic Coil

BRAH BLX1FG500 replaces the Telemecanique LX1FG500 magnetic coil: 500VAC, 50Hz, for 275A - 315A contactors. Part of the TeSys F family. Covered by a BRAH Electric 2-year warranty; in-stock orders placed before 3:00 PM Pacific ship the same business day.

Factory New
Drop-in fit
Matches OEM Specs
In Stock
$301.16USD
1
2-Year Warranty included
(855) 355-2724Average waiting time: 1 min

Product Specifications

DatasheetCAD Doc (STEP)

LX1FG500, 500VAC 50Hz, magnetic control coil, type LX1FG, suitable for use with Telemecanique TeSys F Series LC1F185, LC1F225, LC2F185, LC2F225 contactors, assembled unit includes control wiring terminals, direct substitute for Telemecanique OEM LX1FG500.

BRAH part: BLX1FG500

BLX1FG500 specifications
BRAH Part NumberBLX1FG500
Replacement for OEM Part #LX1FG500
Replacement for OEM MfrTelemecanique
FamilyTeSys F
TypeLX1FG, BLX1FG
Coil Voltage(s)500VAC
Frequency (Hz)50Hz
Amperage Contactor275A - 315A

Frequently Asked Questions

Is this a direct drop-in replacement?
Yes. All BRAH Electric products are engineered as 1:1 direct replacements for the corresponding OEM part. No modifications, adapters, or special wiring are required for installation.*
*Exceptions may apply.
What warranty is included?
Every BRAH product ships with a 2-year warranty from the date of invoice. We guarantee proper function without defects according to provided specifications. Contact Kits carry a 6-month warranty.
Do you offer volume or bulk pricing?
Yes. If you are purchasing 10 or more units, or plan to buy regularly, you may qualify for our volume or reseller pricing program. Click on the product page or call us at (855) 355-2724.
What is your return policy?
Returns must be approved by a BRAH Electric representative with an RMA number. Returns within 30 days of shipment are subject to a restocking charge of 25–50%. Items are non-refundable after 30 days. Contact our support team to request an RMA. If you are unsure about product fit, call us at (855) 355-2724. See our Policies page for full details.
How fast will my order ship?
In-stock items ordered before 3:00 PM (Pacific) ship the same business day. You can see the live shipping countdown timer on the product page. Most domestic orders arrive within 2–5 business days.
Is this compatible with my Telemecanique motor control equipment?
Yes. This BRAH replacement is engineered for direct compatibility with Telemecanique motor control equipment and follows the same mounting and electrical specifications as the original part.
What OEM part numbers does BLX1FG500 replace?
BLX1FG500 is a direct replacement for LX1FG500. No modifications or adapters are required—it installs like the original.
Is BLX1FG500 a drop-in replacement for LX1FG500?
Yes. BLX1FG500 is a 1:1 drop-in replacement for LX1FG500 in Telemecanique applications. Same mounting and wiring.

Why purchase from BRAH Electric?

The new leader in aftermarket electrical parts. Trusted by more than 10k customers. Parts are tested at BRAH Electric's Carlsbad, California facility.
