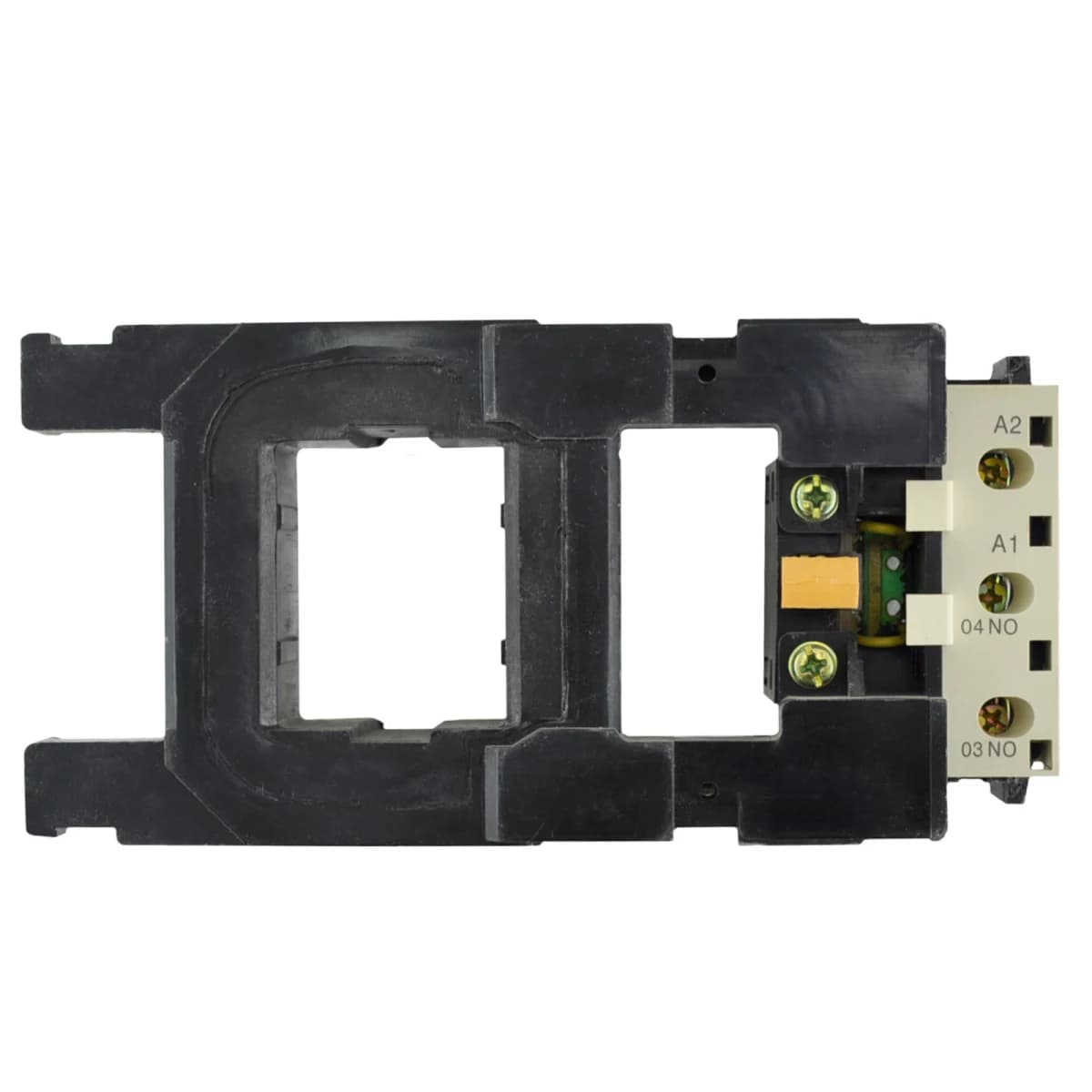

Telemecanique LX1FH5002 replacement Magnetic Coil – BRAH BLX1FH5002
BLX1FH5002 Magnetic Coil – view 1 of 4BLX1FH5002 Magnetic Coil – view 2 of 4BLX1FH5002 Magnetic Coil – view 3 of 4

Telemecanique LX1FH5002 Replacement Magnetic Coil

BRAH BLX1FH5002 replaces the Telemecanique LX1FH5002 magnetic coil: 480/500VAC, 40-400Hz, for 350A - 400A contactors. Part of the TeSys F family. Covered by a BRAH Electric 2-year warranty; in-stock orders placed before 3:00 PM Pacific ship the same business day.

Factory New
Drop-in fit
Matches OEM Specs
In Stock
$316.91USD
1
2-Year Warranty included
(855) 355-2724Average waiting time: 1 min

Product Specifications

DatasheetCAD Doc (STEP)

LX1FH5002, 480/500VAC 40-400Hz, magnetic control coil, type LX1FH, suitable for use with Telemecanique TeSys F Series LC1F265, LC1F330, LC2F265, LC2F330 contactors, assembled unit includes control wiring terminals, direct substitute for Telemecanique OEM LX1FH5002.

BRAH part: BLX1FH5002

BLX1FH5002 specifications
BRAH Part NumberBLX1FH5002
Replacement for OEM Part #LX1FH5002
Replacement for OEM MfrTelemecanique
FamilyTeSys F
TypeLX1FH, BLX1FH
Coil Voltage(s)480/500VAC
Frequency (Hz)40-400Hz
Amperage Contactor350A - 400A

Frequently Asked Questions

Is this a direct drop-in replacement?
Yes. All BRAH Electric products are engineered as 1:1 direct replacements for the corresponding OEM part. No modifications, adapters, or special wiring are required for installation.*
*Exceptions may apply.
What warranty is included?
Every BRAH product ships with a 2-year warranty from the date of invoice. We guarantee proper function without defects according to provided specifications. Contact Kits carry a 6-month warranty.
Do you offer volume or bulk pricing?
Yes. If you are purchasing 10 or more units, or plan to buy regularly, you may qualify for our volume or reseller pricing program. Click on the product page or call us at (855) 355-2724.
What is your return policy?
Returns must be approved by a BRAH Electric representative with an RMA number. Returns within 30 days of shipment are subject to a restocking charge of 25–50%. Items are non-refundable after 30 days. Contact our support team to request an RMA. If you are unsure about product fit, call us at (855) 355-2724. See our Policies page for full details.
How fast will my order ship?
In-stock items ordered before 3:00 PM (Pacific) ship the same business day. You can see the live shipping countdown timer on the product page. Most domestic orders arrive within 2–5 business days.
Is this compatible with my Telemecanique motor control equipment?
Yes. This BRAH replacement is engineered for direct compatibility with Telemecanique motor control equipment and follows the same mounting and electrical specifications as the original part.
What OEM part numbers does BLX1FH5002 replace?
BLX1FH5002 is a direct replacement for LX1FH5002. No modifications or adapters are required—it installs like the original.
Is BLX1FH5002 a drop-in replacement for LX1FH5002?
Yes. BLX1FH5002 is a 1:1 drop-in replacement for LX1FH5002 in Telemecanique applications. Same mounting and wiring.

Why purchase from BRAH Electric?

The new leader in aftermarket electrical parts. Trusted by more than 10k customers. Parts are tested at BRAH Electric's Carlsbad, California facility.

Rated 5.0 from 33 Google reviews (as of October 2026). Read our reviews on Google

Factory New
Drop-in fit
Matches OEM Specs
Ships Worldwide
2-Year Warranty included
