(855) 355-2724Circuit Breaker Mounting Brackets
A mounting bracket fixes a circuit breaker, or an accessory inside it, in place. BRAH Electric lists two, for different jobs. LC-ILINE-FOOT is an I-Line mounting foot bracket for Square D molded case breakers with LC and LX frames. PCSNTBRKT is a Seltronic mounting bracket for fitting shunt trips into Westinghouse and Cutler-Hammer type PC insulated case breakers. Both are direct substitutes for the original brackets. Listings show the family, type, the breaker frame type the bracket suits and the bracket type.
A part that replaces an OEM part number is listed under that number as well as under its BRAH part number, so the results count below can be higher than the number of parts.
Why BRAH Electric?
We're the industry leader in direct replacement.
Need Assistance?
Our support team is here to assist you with any inquiries or issues. Get in touch for personalized support.
Contact us
30-day returns
Returns accepted within 30 days of shipment with an RMA; a 25–50% restocking charge applies.
Mounting brackets for Square D LC and LX and Seltronic PC breakers
Overview

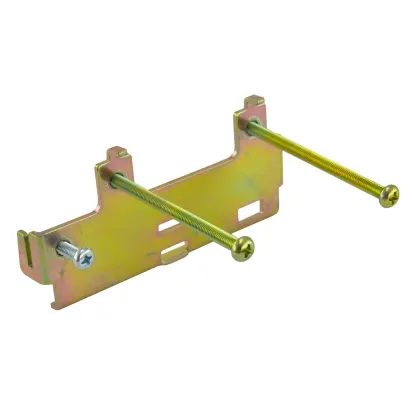

LC-ILINE-FOOT suits Schneider Electric Square D frame types LC and LX in the 400A and 600A frame. The product description lists the breakers it fits by catalog number: LC36300, LC36350, LC36400, LC36450, LC36500 and LC36600, and LX36300 through LX36600. It is the I-Line mounting foot of the breaker.
PCSNTBRKT is for Westinghouse and Cutler-Hammer Seltronic breakers, frame type PC, rated 1200A to 3000A. It is the bracket a shunt trip mounts on inside the breaker, so it is needed when a shunt trip is fitted to a PC frame breaker and the original bracket is missing or damaged.
To choose, match the breaker family and frame type; neither bracket is listed for any other frame. For other breakers, a shunt trip adaption clip for Square D FA and FAL frames is listed under circuit breaker repair parts, and the shunt trips themselves are in their own sub-category. If the breaker is not one of these, call with its catalog number and we will tell you what is available. Mounting brackets carry a 2-year warranty from the date of invoice.
Need help confirming a match? Call (855) 355-2724.
