Stabs are the fingers on the back of a bus plug that clamp onto the busway bars and carry current into the plug. BRAH Electric lists ten replacement stabs and stab kits: stab fingers for General Electric Armor Clad, Spectra and Spectra Low-Amp plugs, stab fingers for General Electric Type FVK plugs, and complete three-stab kits for Siemens and ITE XL-U Series (type UV) and BD Series (type BOS) plugs. Listings show the amperage range, voltage, family and type each one suits.
A part that replaces an OEM part number is listed under that number as well as under its BRAH part number, so the results count below can be higher than the number of parts.
Why BRAH Electric?
We're the industry leader in direct replacement.
Need Assistance?
Our support team is here to assist you with any inquiries or issues. Get in touch for personalized support.
Contact us
30-day returns
Returns accepted within 30 days of shipment with an RMA; a 25–50% restocking charge applies.
Stab fingers and stab kits by plug family
Overview

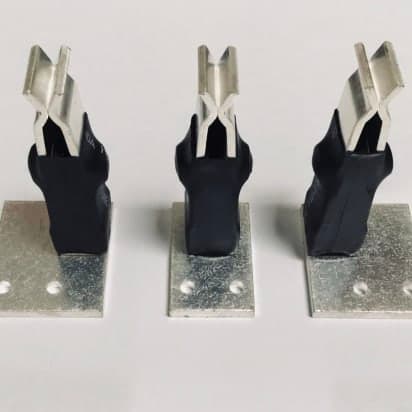

For General Electric Armor Clad, Spectra and Spectra Low-Amp plugs, and BRAH types BEC, BEB and BEL, ACSBSLN1 is a stab finger rated 100A, 600V maximum that can be used on any phase or the neutral; 200A plugs need two per phase. 400ASTAB is the stab for 400A and 600A plugs.
For General Electric Flex-A-Plug type FVK plugs, and BRAH type BEK, FVKSTAB100A and FVKSTAB200A are the A, B and C phase stabs, and FVKSTAB100A4 and FVKSTAB200A4 are for the fourth-wire neutral only.

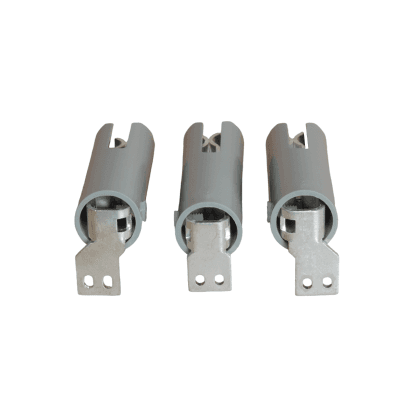

The Siemens and ITE parts are kits: a set of three stabs with their stab insulators. UVSTABKIT1 covers XL-U type UV plugs at 30A, 60A and 100A, and UVSTABKIT2 covers 200A. BOSSTABKIT1 and BOSSTABKIT2 cover BD Series type BOS plugs at the same two sizes. The kits suit 3-wire and 4-wire plugs on 240V and 600V systems.
To choose, match the plug family and type, the plug amperage and, for FVK, whether the stab is for a phase or for the neutral. Stabs carry a 2-year warranty from the date of invoice.
Need help confirming a match? Call (855) 355-2724.
